Description

WIPER PREMIUM C80 800M²
THE WIPER C80 ROBOTIC LAWNMOWER IS COMPACT AND EFFICIENT FOR SMALL AND COMPLEX GARDENS. WIPER C80 WAS DESIGNED TO MOW GARDENS OF UP TO 800M² WITH NARROW AND TIGHT SPACES. THE SMART CUTTING ALGORITHM AND ECO MODE SENSOR ENSURE COMPLETE MOWING OF THE LAWN AND OPTIMISATION OF THE WORKING TIMES.

ABOUT ZUCCHETTI: WIPER
* ZUCHETTI WAS FOUNDED 1985 IN ITALY, AND ARE A WORLD LEADER IN AUTOMATION, AND RENEWABLE TECHNOLOGIES.
* OVER 18 YEARS IN THE ROBOTIC LAWNMOWER MARKET
* PRODUCTS ARE HAND BUILT IN ITALY
* 98% OF THE COMPONENTS USED ARE EUROPEAN MADE, WITH BATTERIES AND PCB BOARDS BEING MANUFACTURED ON-SITE
* EVERY PRODUCT INDIVIDUALLY TESTED BY HAND AS IT COMES OFF THE ASSEMBLY LINE

AT A GLANCE – THE WIPER C6 ROBOTIC LAWNMOWER:
* DESIGNED TO MOW GARDENS OF UP TO 600M² WITH NARROW AND TIGHT SPACES.
* THE SMART CUTTING ALGORITHM AND ECO MODE SENSOR ENSURE COMPLETE MOWING OF THE LAWN
* OPTIMISED WORKING TIMES.
* SIMPLE AND INTUITIVE DISPLAY
* MOW UP TO 2 SEPARATE AREAS
* THE MULTI-EDGE SOLID BLADE MULCHES CUTTINGS INTO TINY PIECES.
* ECO MODE SENSOR
* RECOGNISES THE MOWN AREAS OF LAWN AND REDUCE WORKING TIMES TO THE BENEFIT OF THE LAWN AND REDUCE WEAR ON THE ROBOT
* SPIRAL CUT
* GRASS DETECTION: CAN DETECT AREAS OF LONG AND THICK. ONCE IT REACHES AREAS LIKE THESE, IT BEGINS MOWING IN A SPIRAL TO FOCUS ALL OF ITS EFFORTS..
* BUILT IN RAIN SENSOR
* TRIPOD DESIGN; ALL THREE WHEELS ARE ALWAYS IN CONTACT WITH THE GROUND ALLOWING THE MOWER TO FOLLOW YOUR LAWNS CONTOURS FOR AN IMPROVED FINISH.
* FULLY AUTOMATIC OPERATION; DEPARTS, MOWS & RETURNS TO RECHARGE AUTONOMOUSLY
* BLUETOOTH RECEIVER; USE THE ‘WIPER REMOTE’ APP FROM IOS AND ANDROID DEVICES. YOU CAN UPDATE THE SOFTWARE TOO.
* SUPER SHARP 4 POINT SOLID BLADE
* CLOSE TO EDGE CUTTING
* EVERYTHING YOU NEED TO GET MOWING IS INCLUDED IN THE BOX (DOCKING STATION, PERIMETER WIRE, PEGS)
* SAFETY
* LIFT & TIP SENSORS, EMERGENCY STOP BUTTON, SAFETY PIN CODE ENABLED
* RUBBER BUMPER; PROTECTS THE MOWER AND ANY OBSTACLES THE MOWER MAY BUMP INTO FROM MARKS.

SPECIFICATIONS WIPER C6 ROBOTIC LAWNMOWER – UP TO 600M²:

POWER
MAX SQ.MT SUGGESTED (-20%) 600
MOTOR TYPE BRUSHED
LITHIUM-ION BATTERY (25,9V) 1 X 2.5 AH
MAX ALLOWABLE SLOPE (%) 45%
MAX SLOPE (%) 35%
SLOPE ON THE EDGE OR PERIMETER WIRE (%) 20%
AVERAGE WORKING TIME +-20% 00:50HRS
RECHARGE MODE CONTACT

CUTTING SYSTEM
BLADE TYPE KNIVE MED 4 BLADER
CUTTING WIDTH 25 CM
CUTTING HEIGHT 25-60 MM
SPIRAL CUTTING YES
ECO MODE YES
RAIN SENSOR YES
MAXIMUM MANAGED AREAS 3

CONTROL DEVICES
USER INTERFACE DISPLAY
APP CONTROL BLUETOOTH
BLUETOOTH RECEIVER YES
SMS ALERT NO

SAFETY
LIFTING/TIP-OVER SENSOR YES
PUSH/STOP EMERGENCY BUTTON YES
PIN CODE YES

STANDARD EQUIPMENT FOR INSTALLATION
CHARGING STATION YES

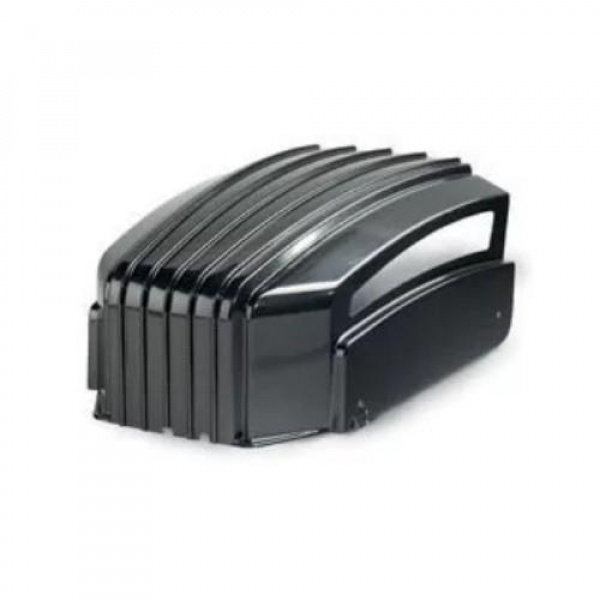

COVER RECHARGING BASE: OPTIONAL

FEATURES
WEIGHT WITH BATTERIES INCL. (KG) 9,8
ROBOT DIMENSION (LXPXH) 540X450X252 MM
POWER SOUND – DB(A) 65
LEVEL OF PROTECTION IP44
SIMPLE AND INTUITIVE DISPLAY
MANAGE UP TO 3 SEPARATE AREAS
SLOPES UP TO 45%
2.5 AH LITHIUM-ION BATTERY
ECO MODE SENSOR
BLUETOOTH RECEIVER
2 YEAR WARRANTY
The C series models are the “babies” of the Wiper Premium family, but with all of the technology of the range, they boast impressive performance. The Wiper Premium C Series line was designed and built for small and medium-sized gardens. They feature the precision and agility to move, even in gardens with tight areas or small manoeuvring spaces. The models cover cutting areas from 600m² to 2000m² with slopes of up to 45% and can adapt to all surfaces. They also have user-friendly interfaces and menus on the control panel display, which allow easy programming of the work type, areas and activation times of the robot.

SPECIFICATIONS
·Transmitter built into the recharging base
· Front recharging
· Rear zip opening with locking clip
· Dual front coil
· Motherboard with gyroscope and display in the top of the body
· Return to base at cable and V-meter system (C6 only)
· Easy installation
· Safety lifting sensor
· 3 wheels (2 driven)
· Emergency stop button in accordance with the 2006/42/EC Directive
· Lifting safety in accordance with 60335-2-107
· Finger test in accordance with 60335-2-107
· Foot, Hand, Child’s arm testing in accordance with 60335-2-107
· IEC 60730-1 safety software in accordance with 60335-2-107
· Instructions updated in accordance with 60335-2-107
· Robot lawnmower EN 60335-2-207
· EN 61508-3:2010
· Patented anti-cut blade
